User’s Guide

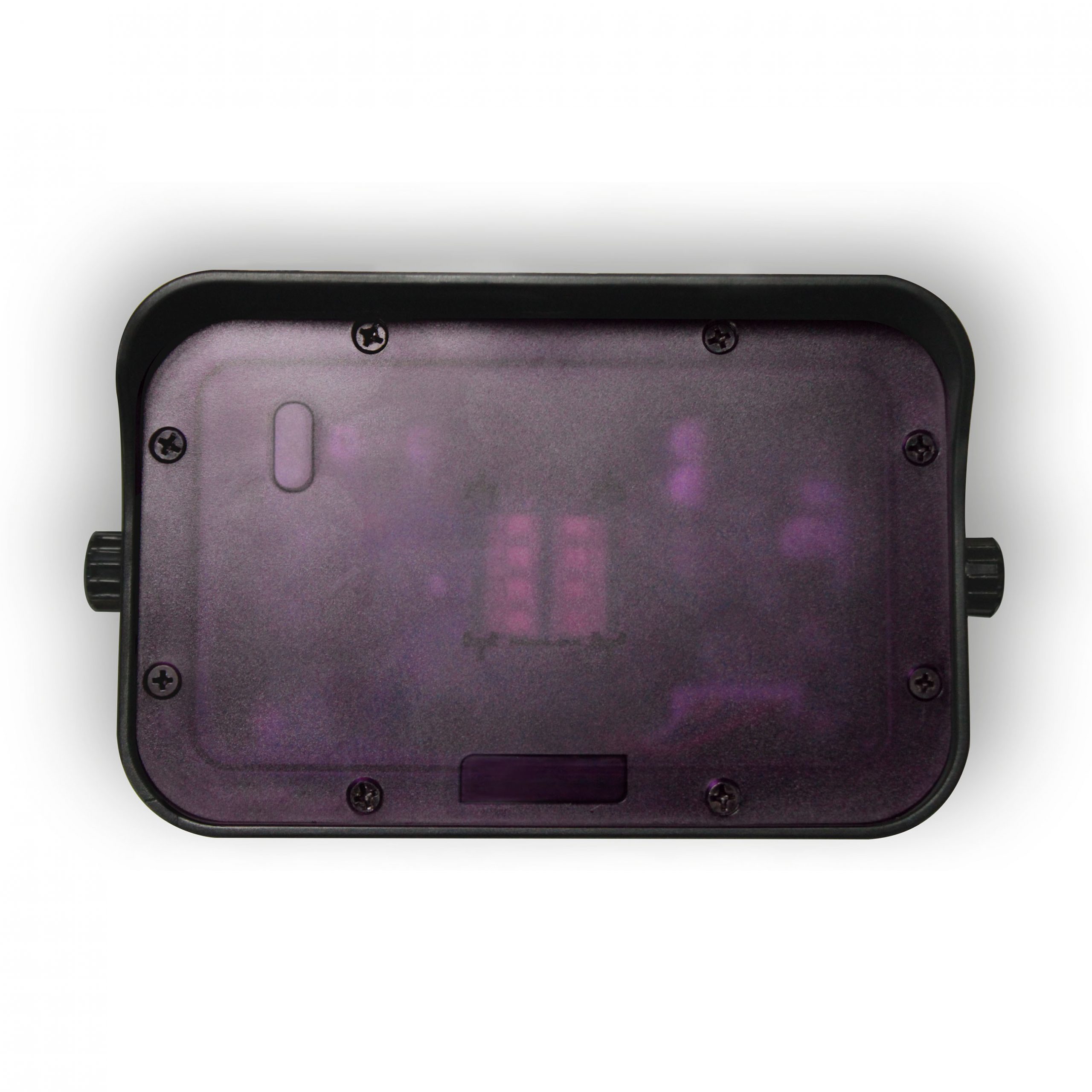

RP42-9BW is a high-performance motion radar detector for vehicle detection and human detection,specilly developed for industial doors, garage doors,cold storage doors,road gates and other industie.lt is with dual relays of vehicle-detection and pedestrian-detection,and can slso open the corresponding relay output as needed.Meanwhile, RVP42-9BW has a recognition and filter function for horizontally moving vehicles or pedestrians.Support apps setting, you can use remote transimitter and mob apps to setting.the function.
Technical Data
| Application technology | Doppler radar |
| Transmission frequency | 24.125GHz |
| Transmission power | <20dBm |
| Detection height | 2.0m~9.0m |
| Angle adjustment | 0°-90°longitudinal |
| Detection speed | 5cm/s ~ 25km/s |
| Detection area(30° Angle) | 3.0m*3.5m@height: 2m,6.5m*8.5m@height: 9m |
| Operation voltage | 12~36VADC |
| Operation current | <100mA |
| Power frequency | 50Hz |
| Temperature range | -30 ℃ ~ + 60 ℃ |
| Relative humidity | 0% to 95%, no condensation |
| Protection grade | IP65 |
| Relay output | 24VDC@1A 125VAC@0.5A |
| External dimensions | 164mm x 111mm x 94.5mm |
| Cable length | 7m |
| Sensor weight | 650g |

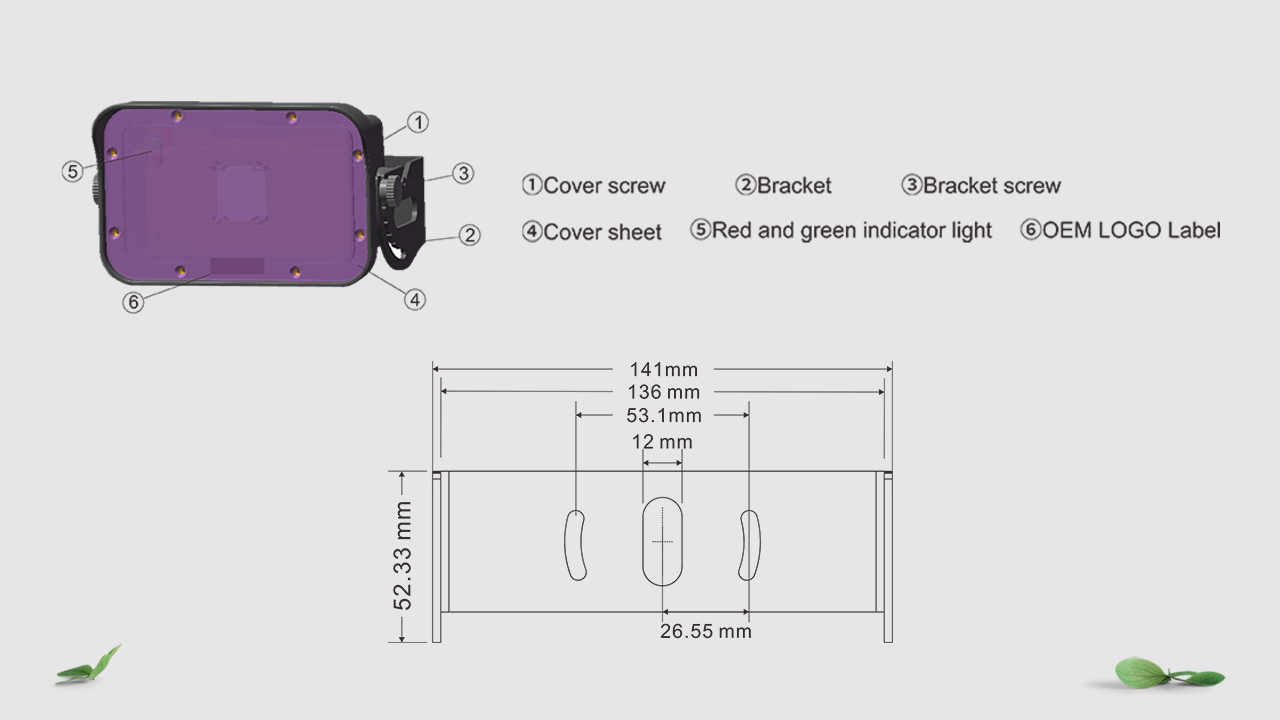

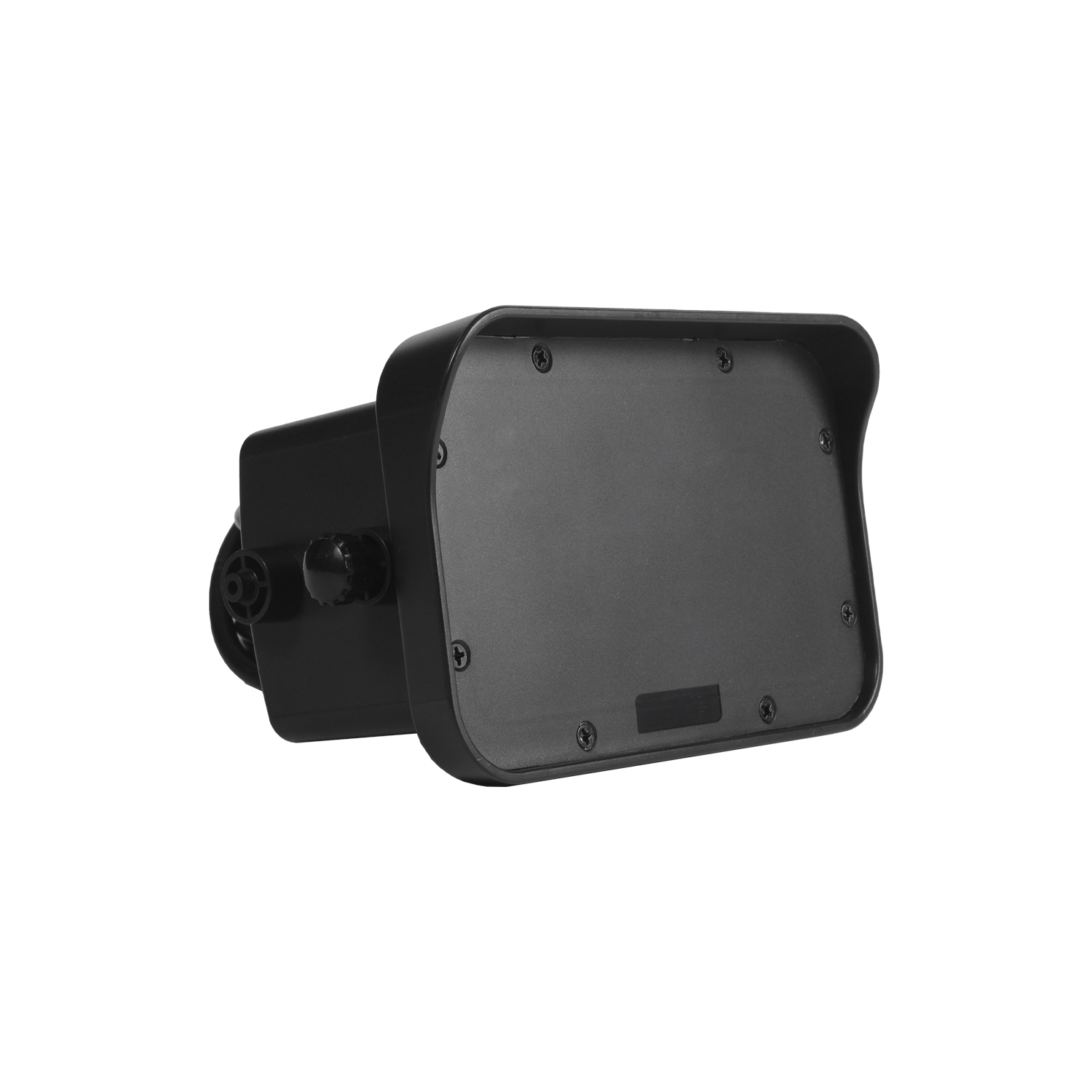

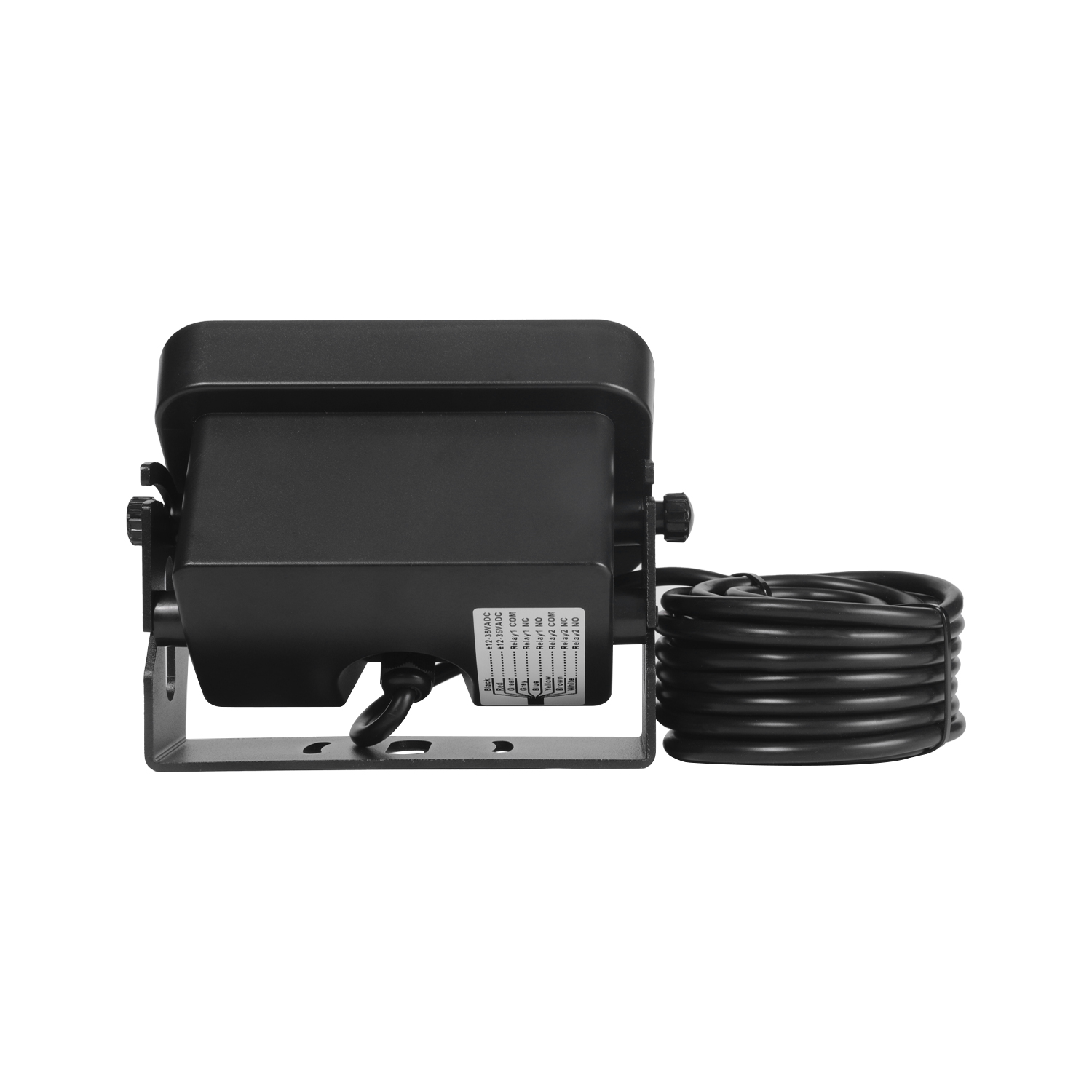

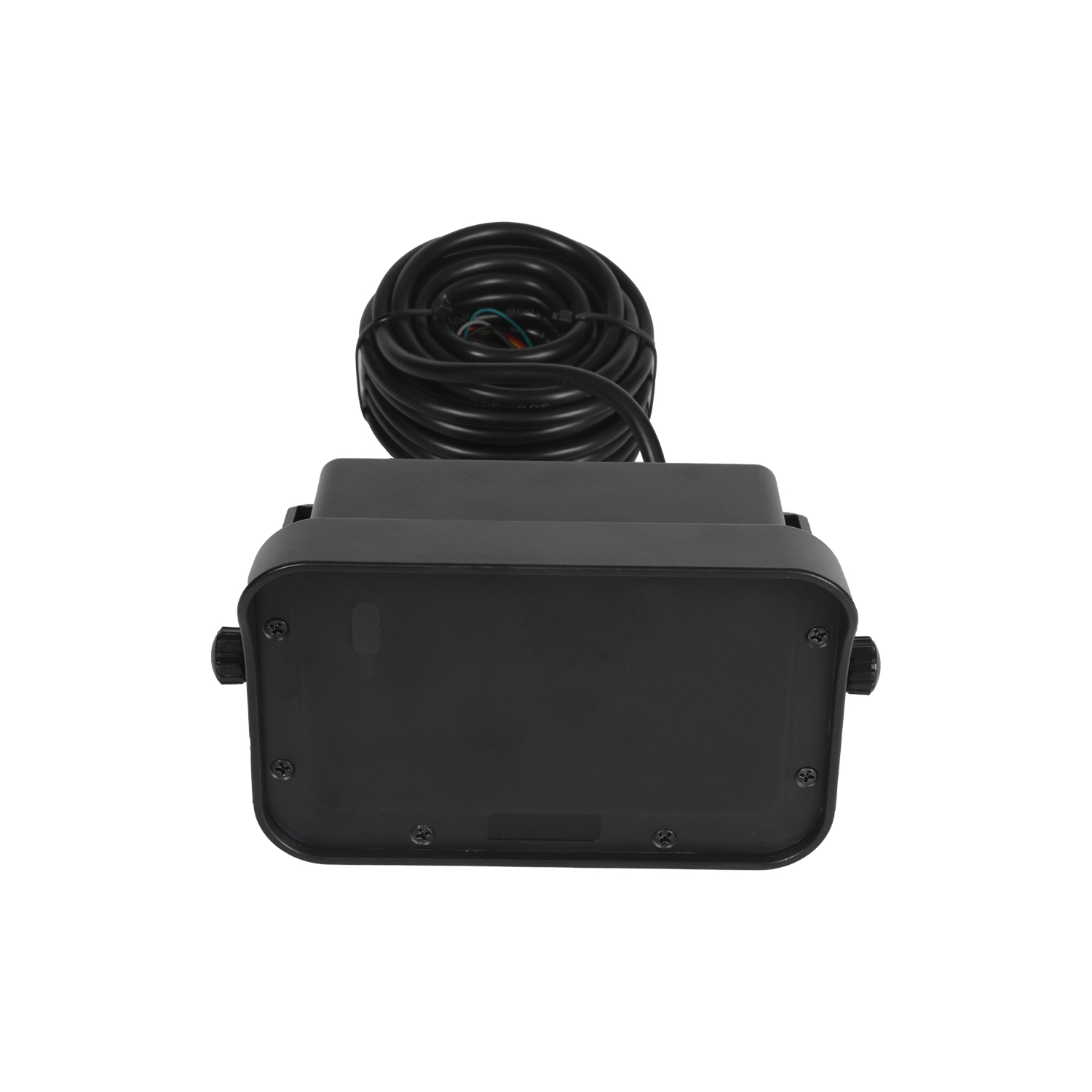

The Appearance And Dimension

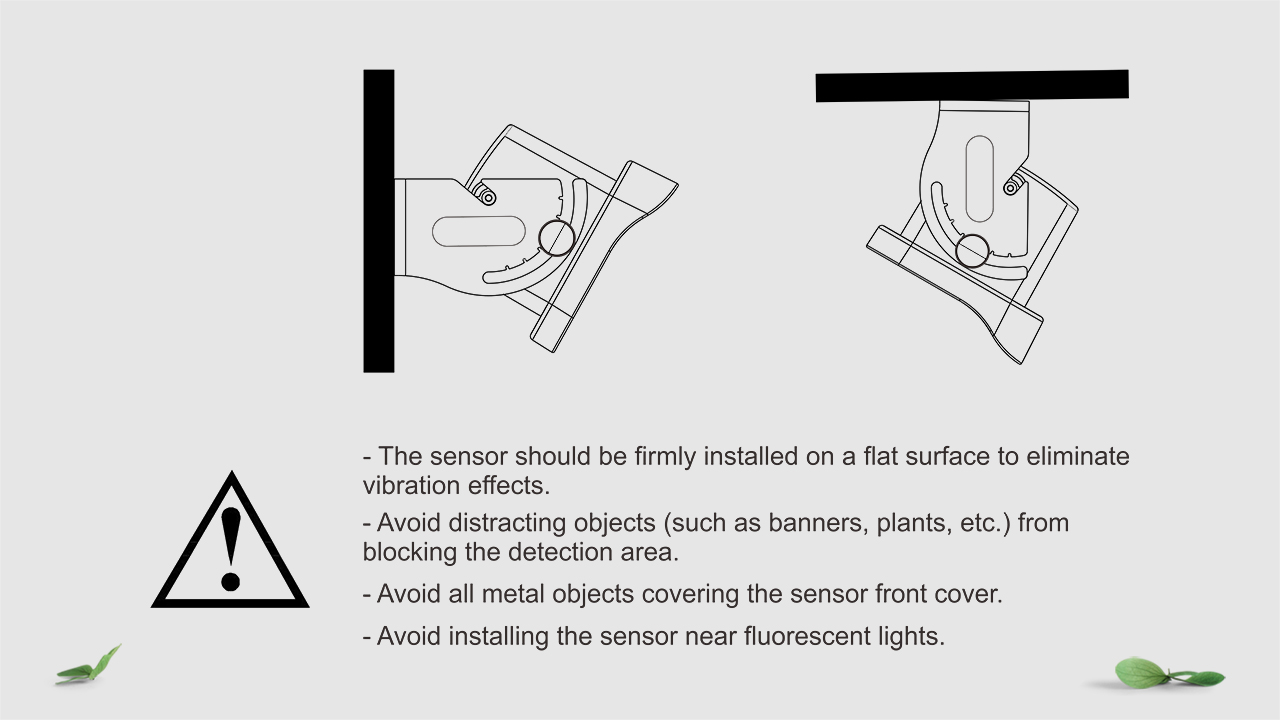

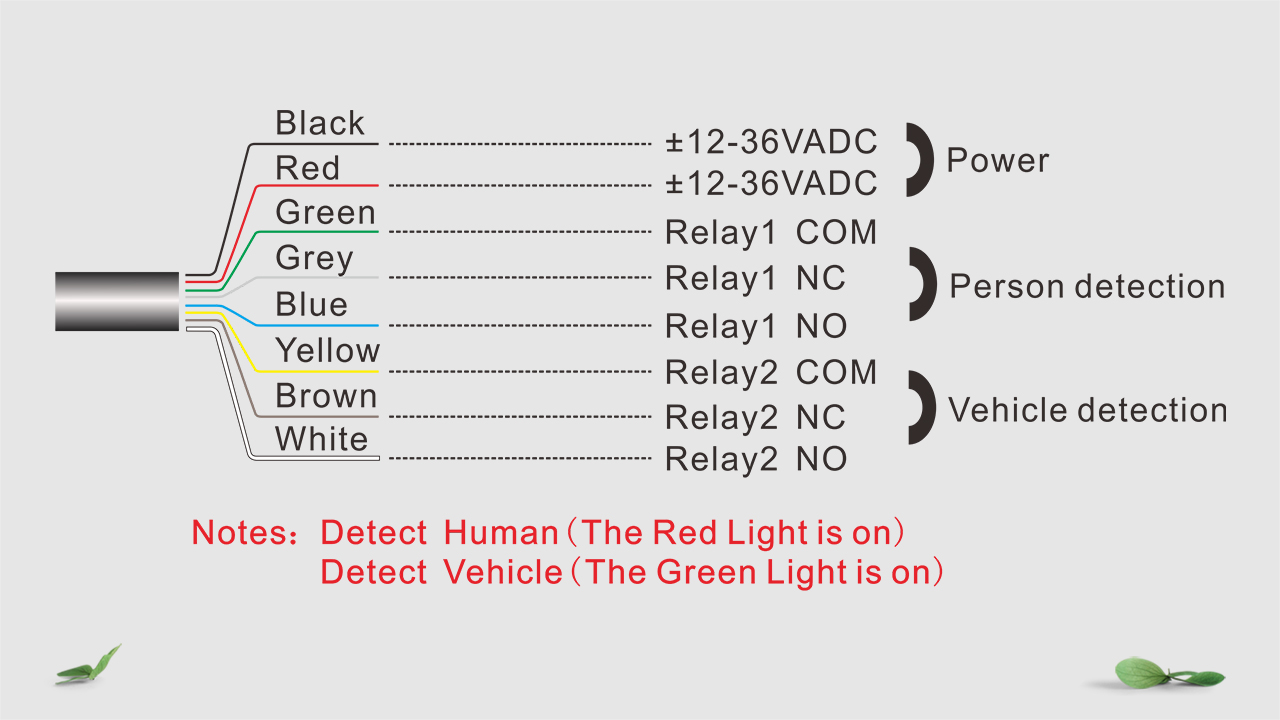

Wiring And Installation


Radar Bluetooth Connection Light
.jpg)

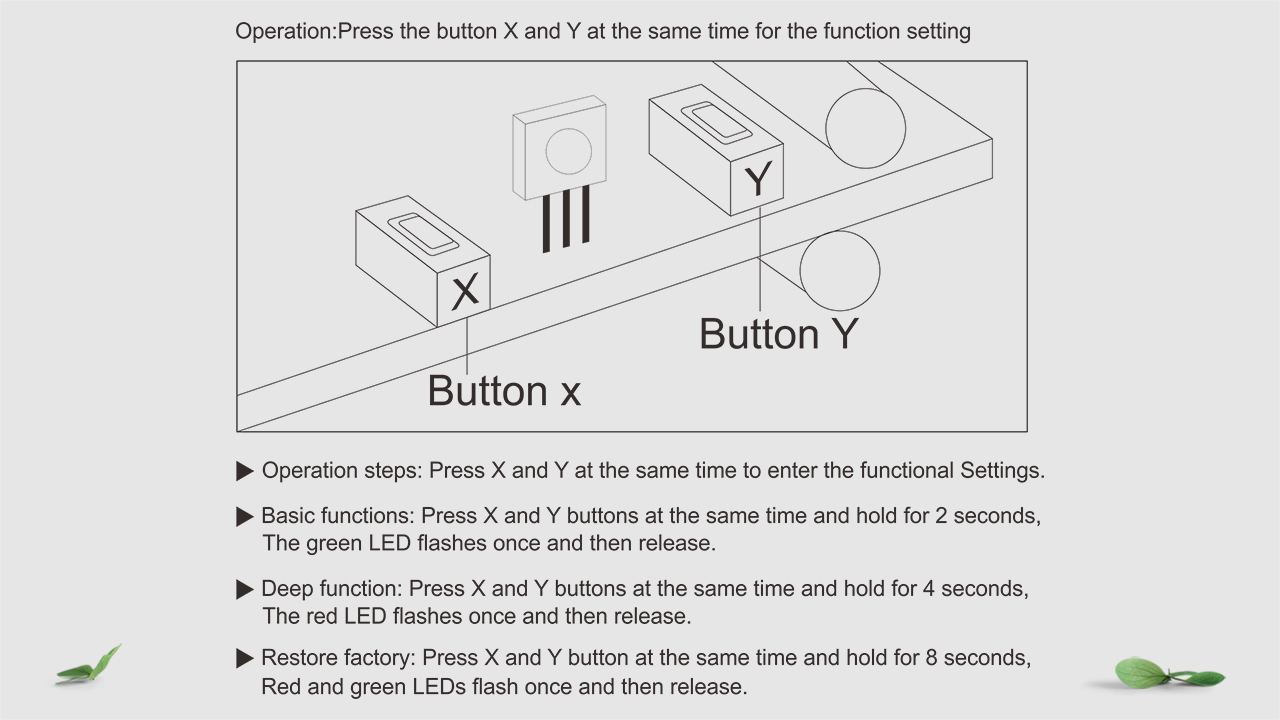

Setting
