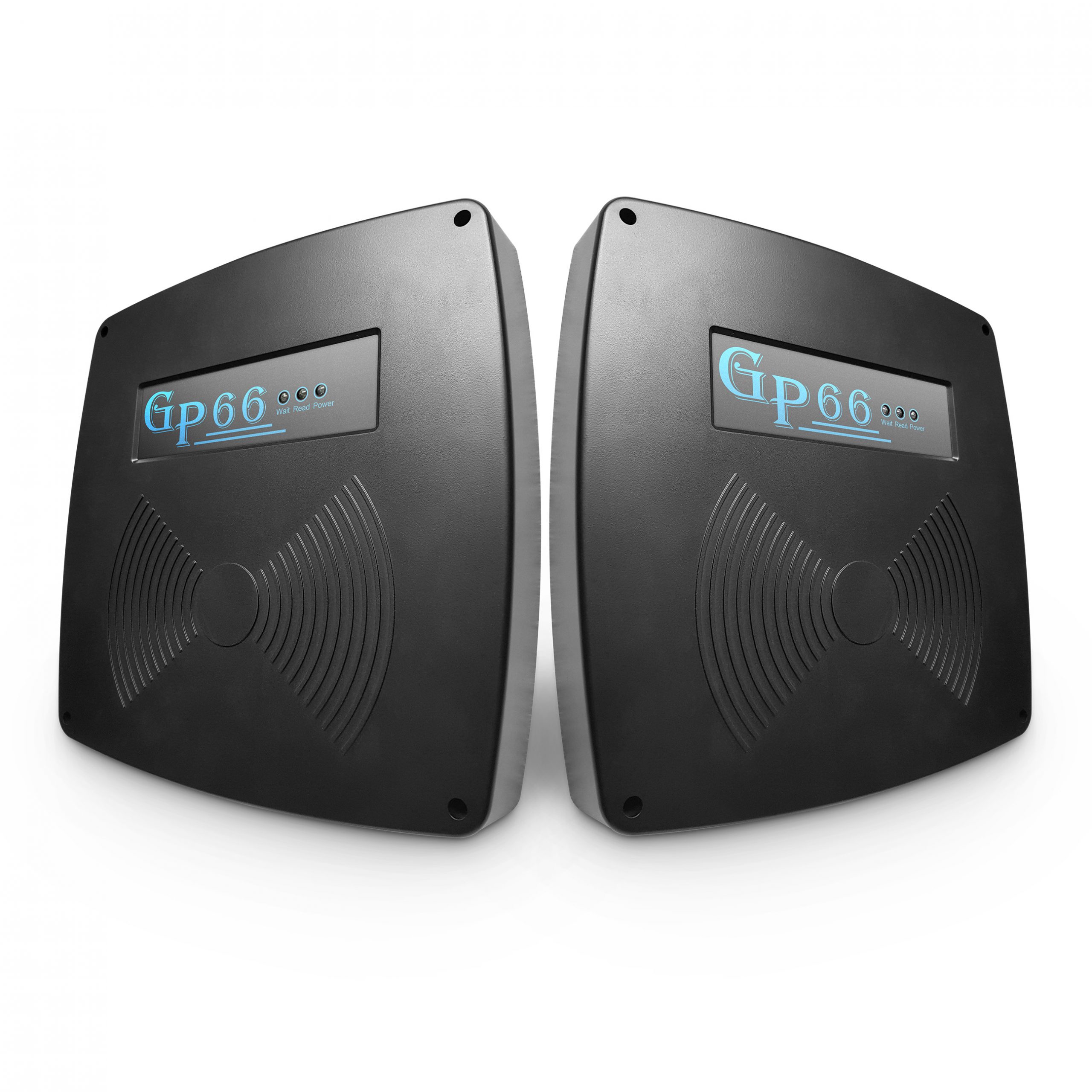

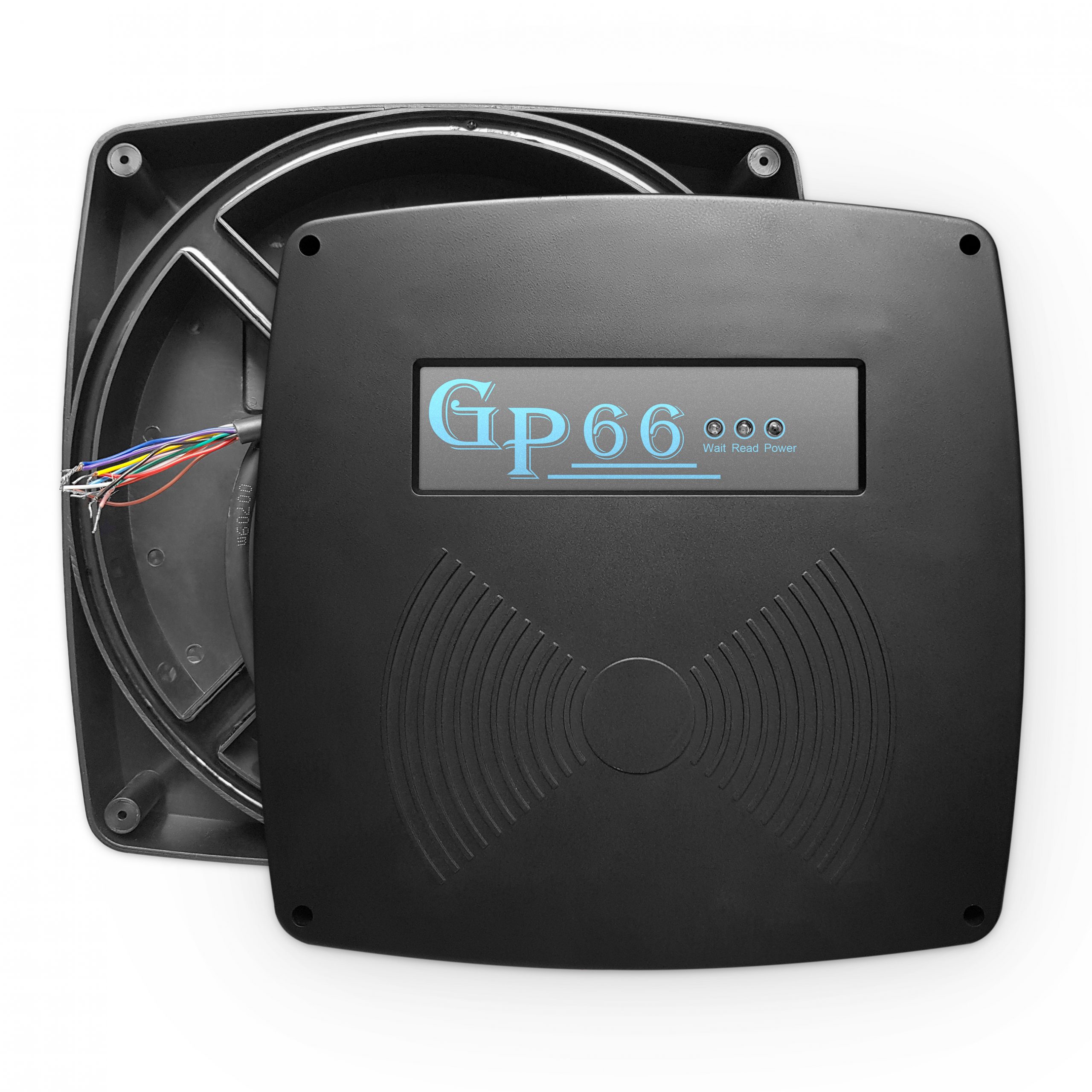

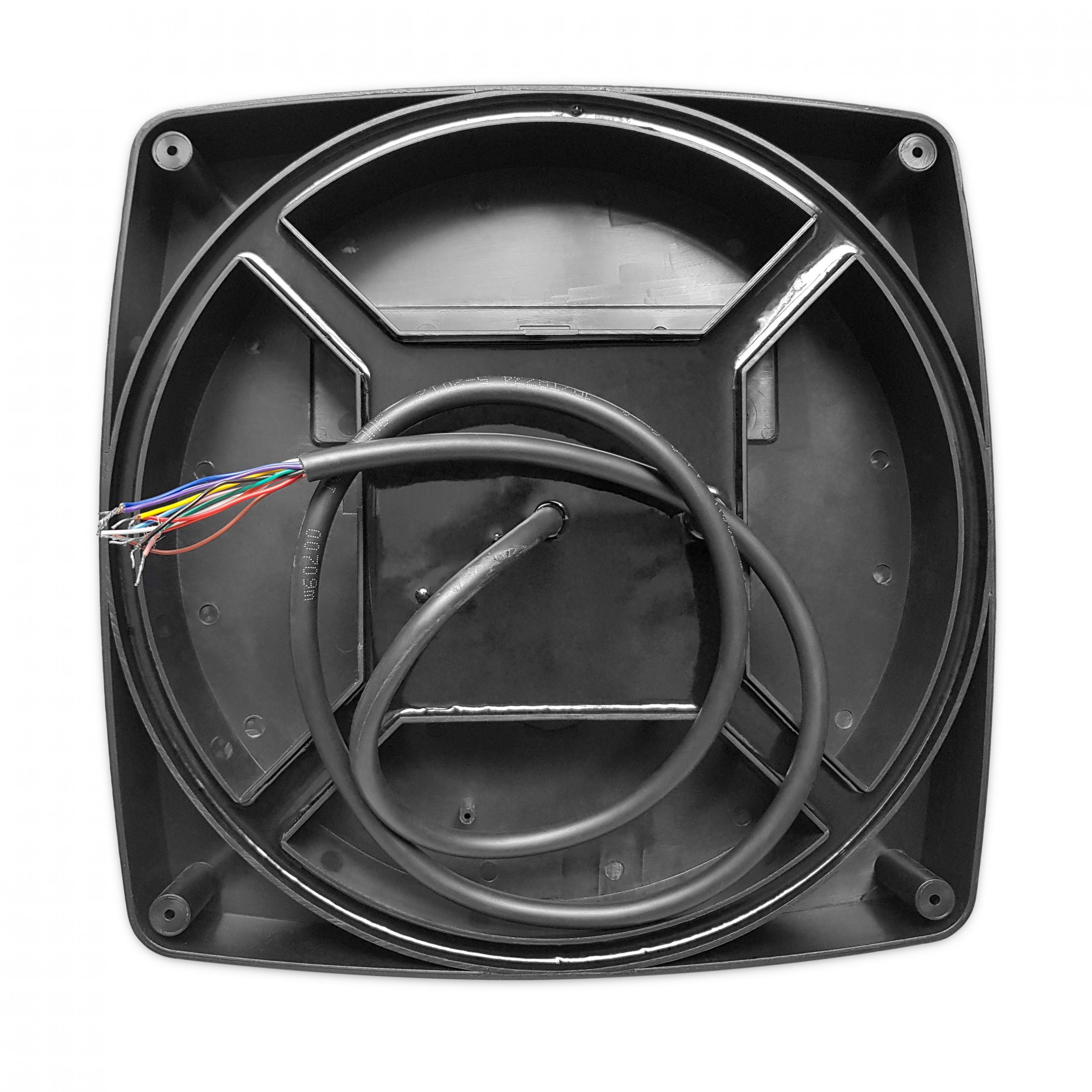

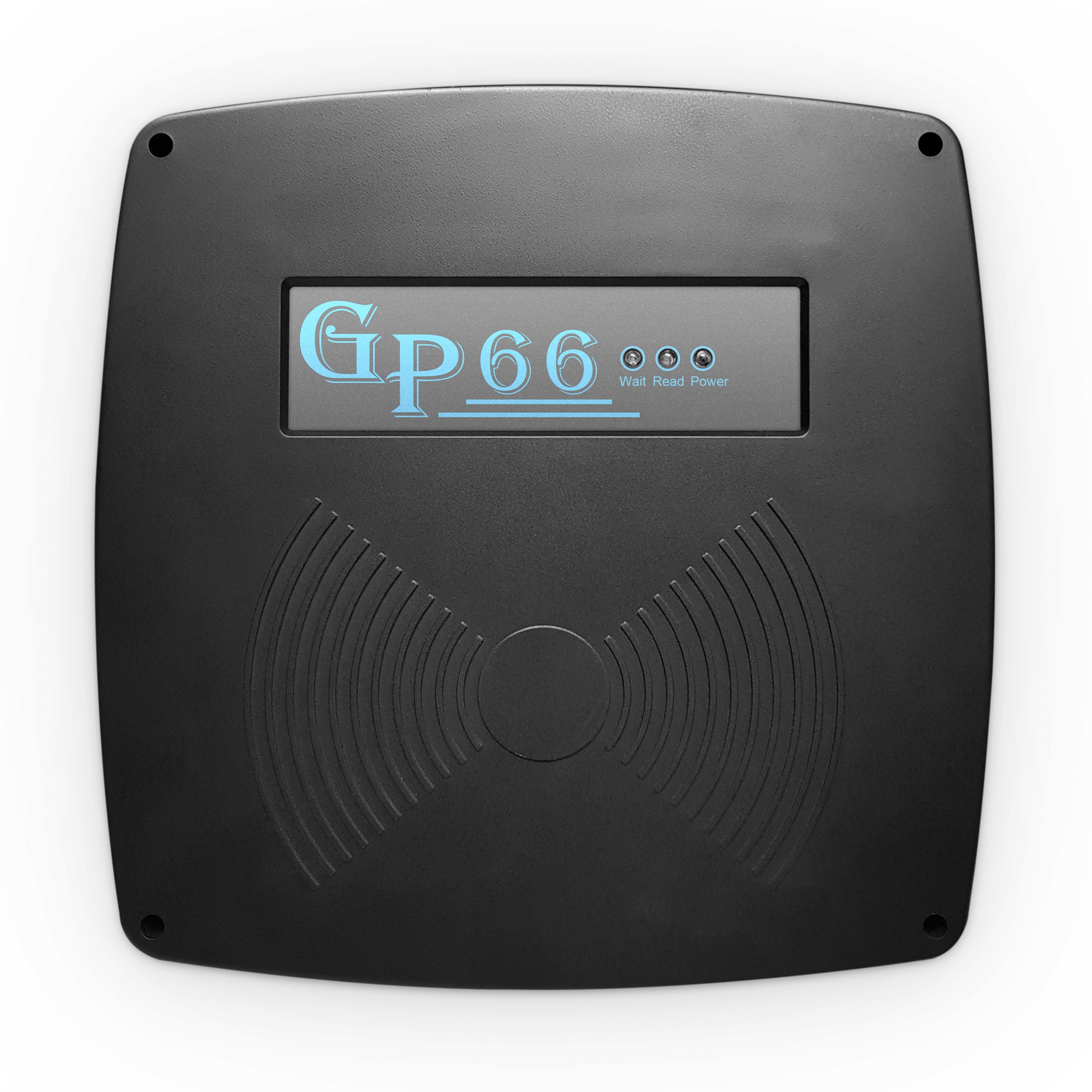

GP-66 RFID Non-Contact Middle Range Card Reader

图-1
图-2
图-3
图-4
Previous
Next

Product Description

125Khz EM GP66 proximity mid range reader is most used for door access system. It is working at 125Khz is suitable for most widely used RFID Cards some times called as Proximity card also.Middle range reader, JUTAI EM proximity mid range reader, access control reader distance 65-100CM JUTAI factory have 10 years experience in rfid reader. JUTAI company in the RFID reader in the industry. We have proven technique to production GP66 EM 125khz middle range reader.

Features:

1.Can penetrate solar film(V-KOOL40)

2.Auto Tuning Function to compensate presence of metal and interference

3.Extended reading range from 65cm to 100cm

4.Bright LED indicators, Tuning LED bar

5.Firmware up gradable in the field

6.IP-65 waterproof housing design

Download
Order
Facebook
Twitter
Youtube
Techonology Parameter:
Interface Wiegand 26 or 34 bits, RS232 or RS485
Working Current 120mA
Reading Range 65-100cm
RFID Card Accepted 125KHZ, 64bits, Manchester encoding
Power Supply input 60Hz or 220V/50Hz
Output voltage DC12V/5A
Dimensions 259(w)*259(L)*36(D) mm
Housing material ABS
Operating Temperature -30℃ to 65℃
Humidity 0-95% relative humidity noncondensing
Warranty 1 year





Application:

Middle Range Parking Management System

No-Stop hands Free Barrier Gate entrance and Exit Access Control System

Hands Free Elevator Access Control System

Middle Range Door Access Control System

Write Us and we'll get back to you
