Bank Security Encryption And Smart Remote Control

1.Function Introduction

♦ JUTAI Bluetooth Gate Opening System is mainly composed of three parts, Bluetooth receiving module, remote transmitter, and mobile phone APP (Supporting Apple and Android systems)

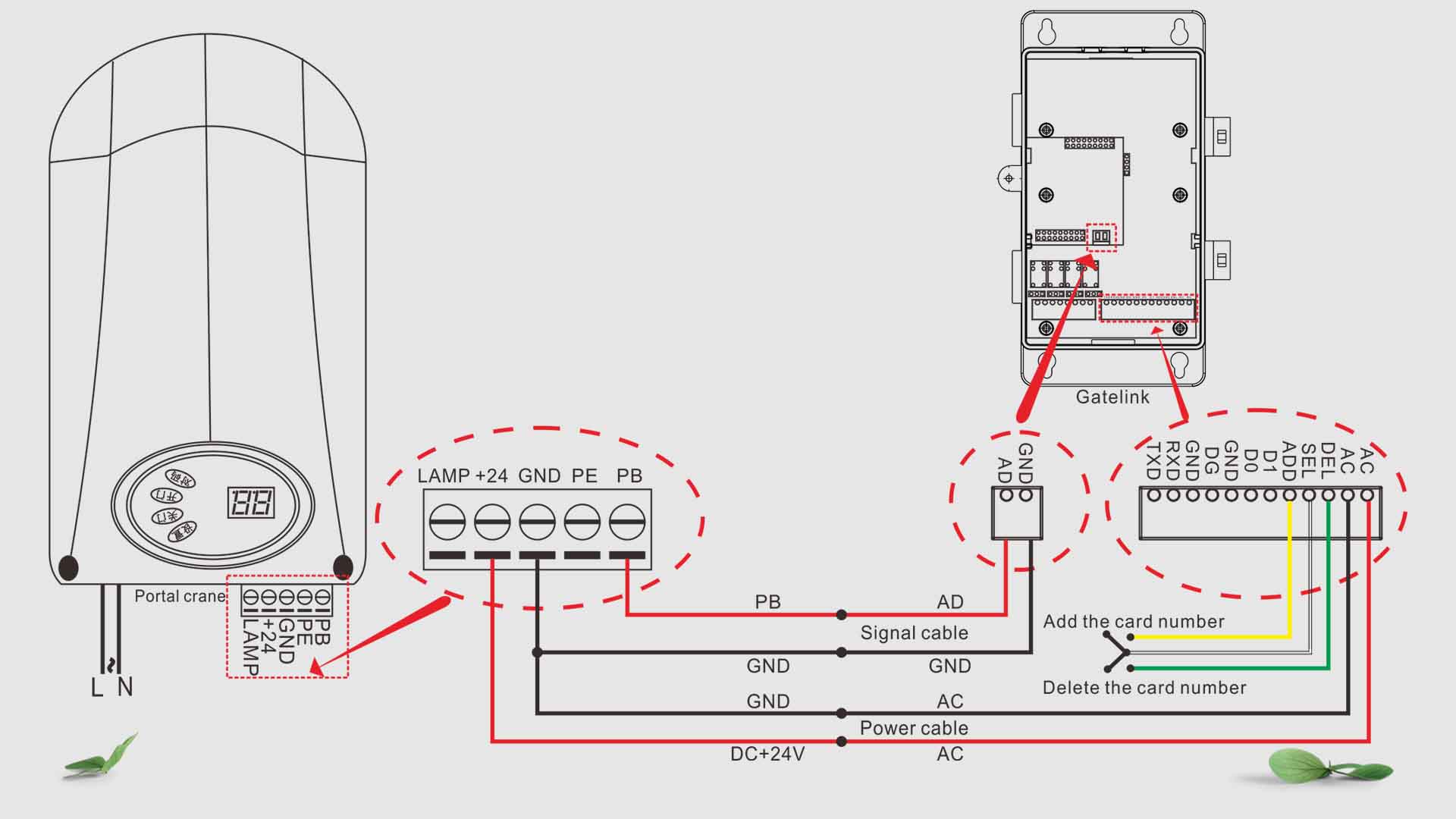

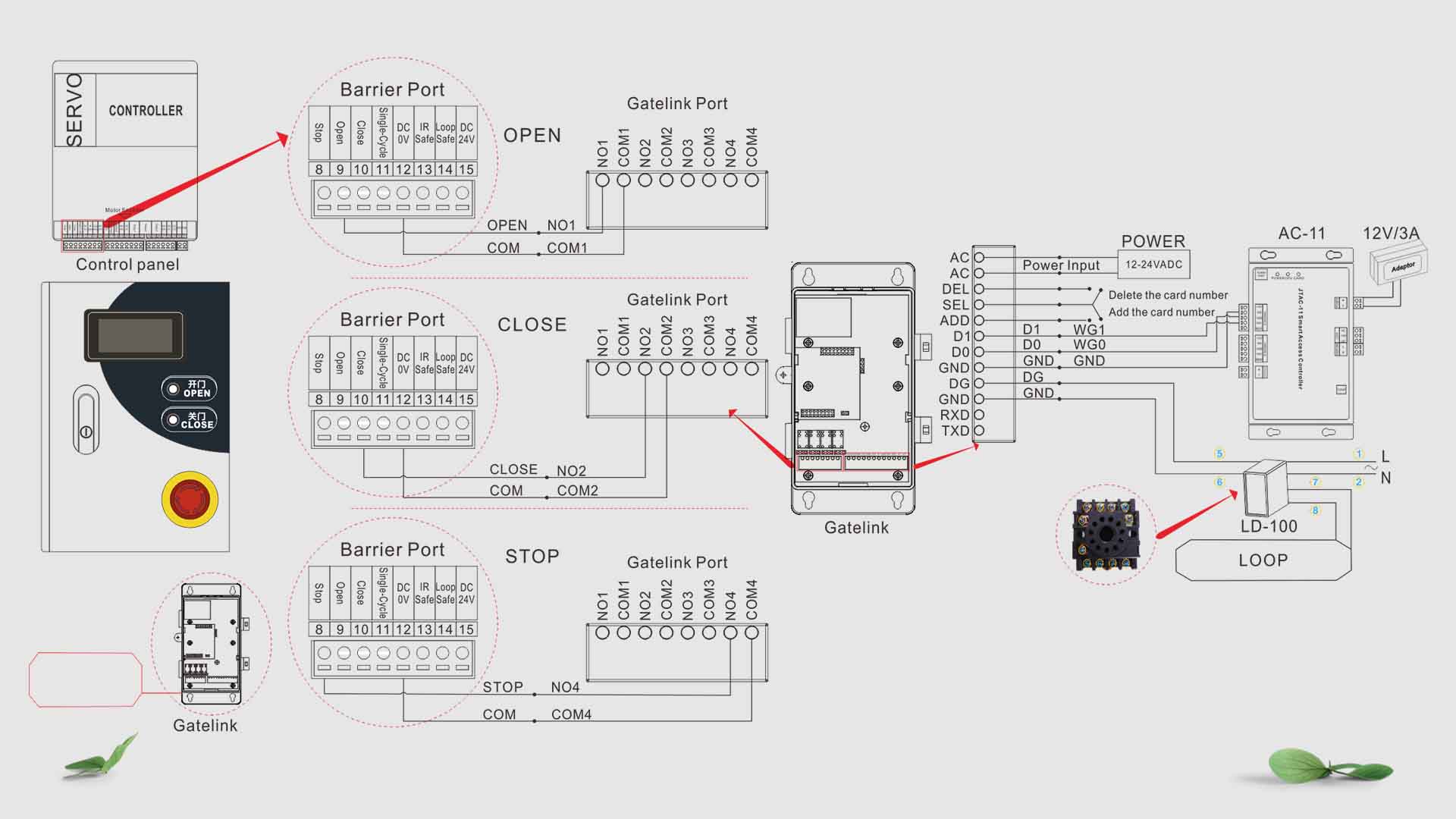

♦ Bluetooth receiving module, model is BR24R4, and which has a built-in 4-way relay, it can be used with various doors and gates. By default, 255 remote control IDs are stored, and 433MHZ remote control receiving module is built-in, which can be used with all series of JUTAI remote transponder to open doors remotely; At the same time, a 2.4G Bluetooth receiving module is built in also , and the Bluetooth function of the supporting mobile phone is practical, enabling the mobile phone to open the door remotely; it has Wigan output, which can be used as a transit board to connect JUTAI access control system; IP65 protection grade, used directly outdoors.

♦ JUTAI smart remote control is divided into two series, Normal remote control and high-power remote control. The remote distance of the Norma remote transponder distance is 30m, the high-power remote control is 100m, and the remote transponder distance is 100m.

♦ The operating frequency is 433MHz. it is designed with rolling code and 128-bit nonlinear encryption technology, which is safe against copying, it is the ideal choice for your home safely.

BR24R4	Working voltage:12-24VADC
	Operating current:<300mA
	Temperature and humidity:- 40~75 ℃ (10-90% RH frost free)
	Relay output:4-way relay output (NC/NO can be set, default setting is NO)
	Trigger signal:function reservation
	Weigand output signal:1 group
	Add/delete ID signal:Add can be added individually, delete is to clear all
	ID capacity:255
	Working frequency:433MHz
	Bluetooth operating frequency:2.4GHz
	433 Remote control communication distance:Conventional remote control (30m), High-power remote control (100m)
	Product size:174 * 108 * 57mm
	Product weight:0.22Kg

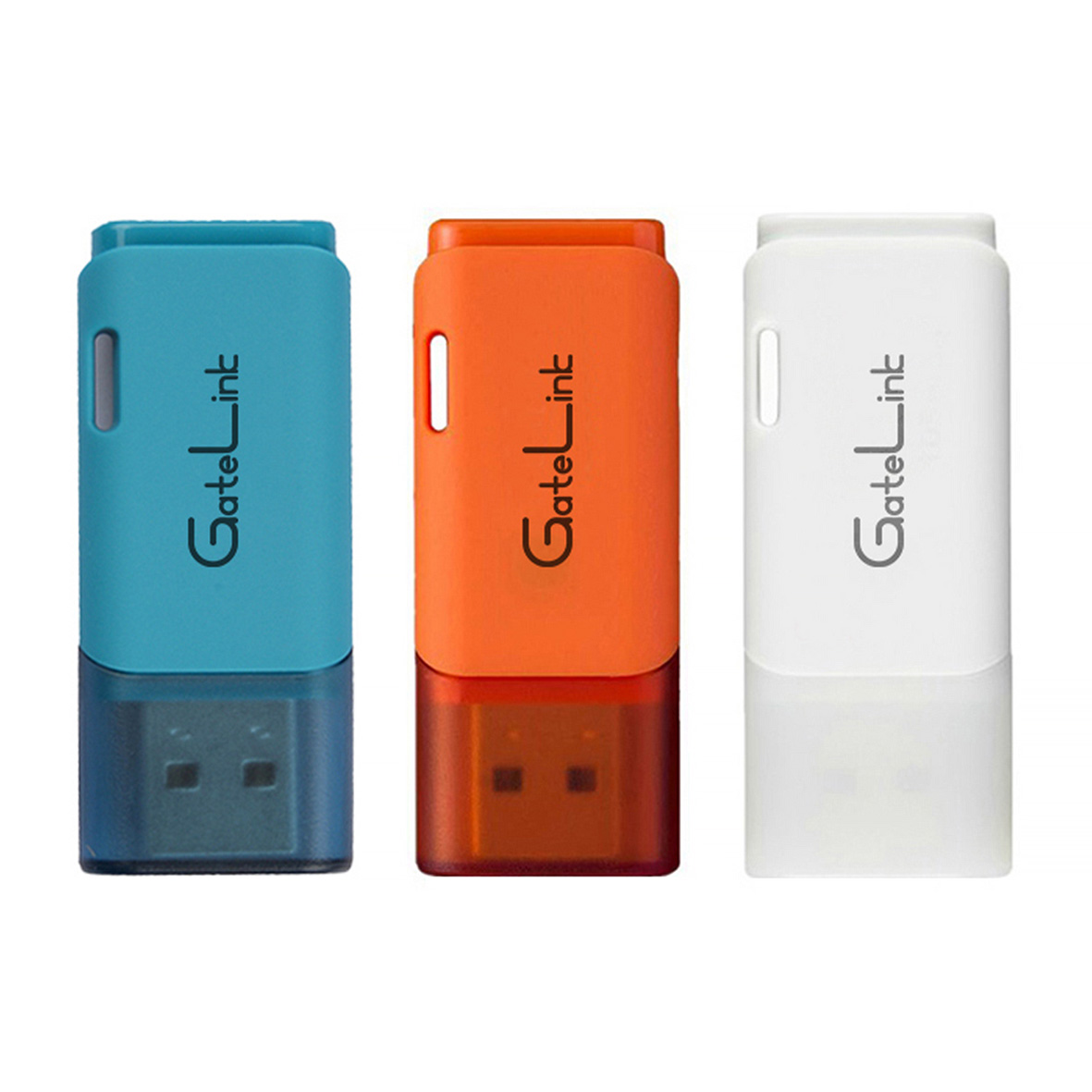

UR-4O	Frequency:433MHz
	Power supply:USB port for power
	Remote control communication:rolling code+128 bit non-linear encryption technology
	Working distance:≤30m
	Add card or delete card mode:through short circuit or special remote control
	Encryption method:use special USB cable for encryption
	Working voltage:5VDC
	Power interface:USB
	Door opening mode:automatic induction door opening

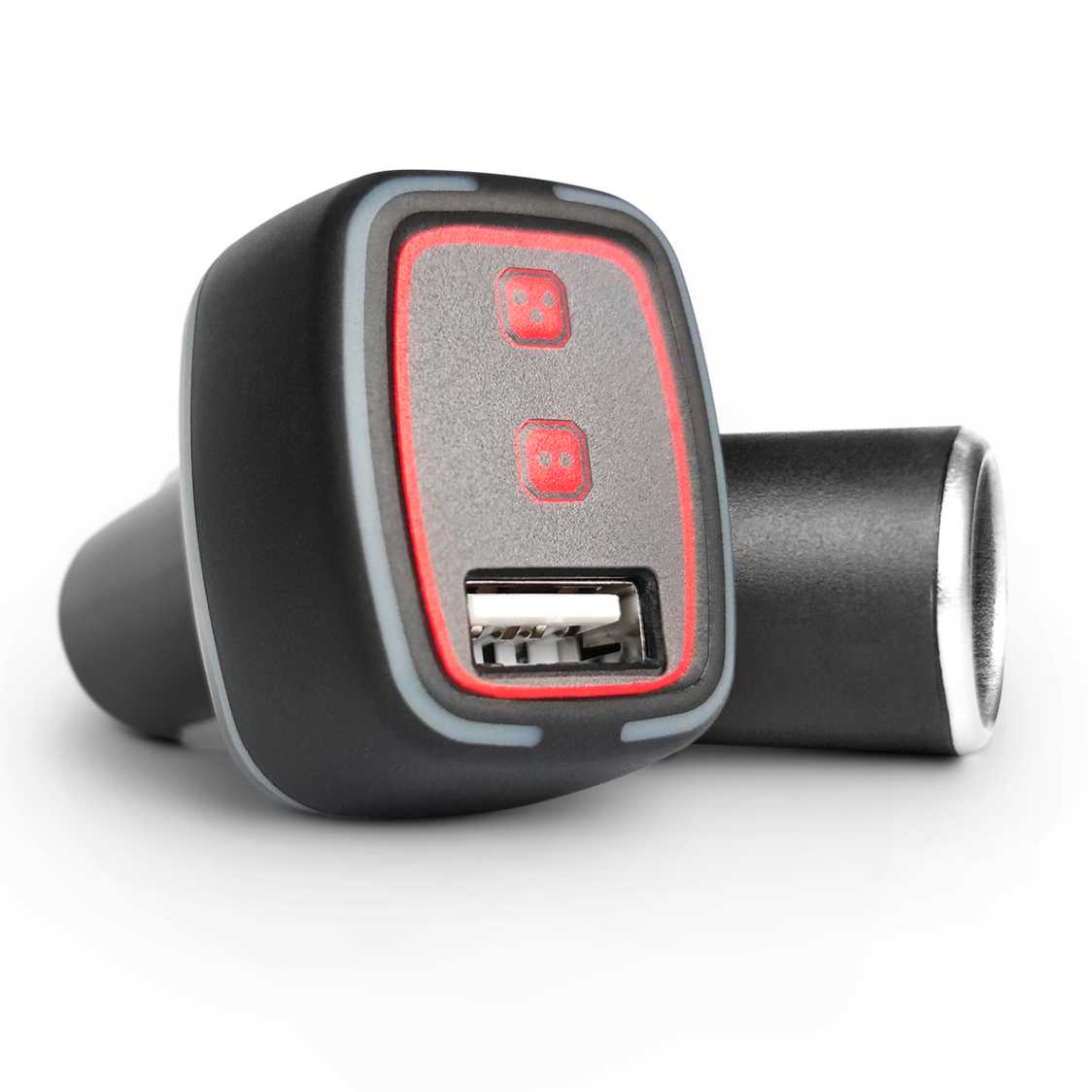

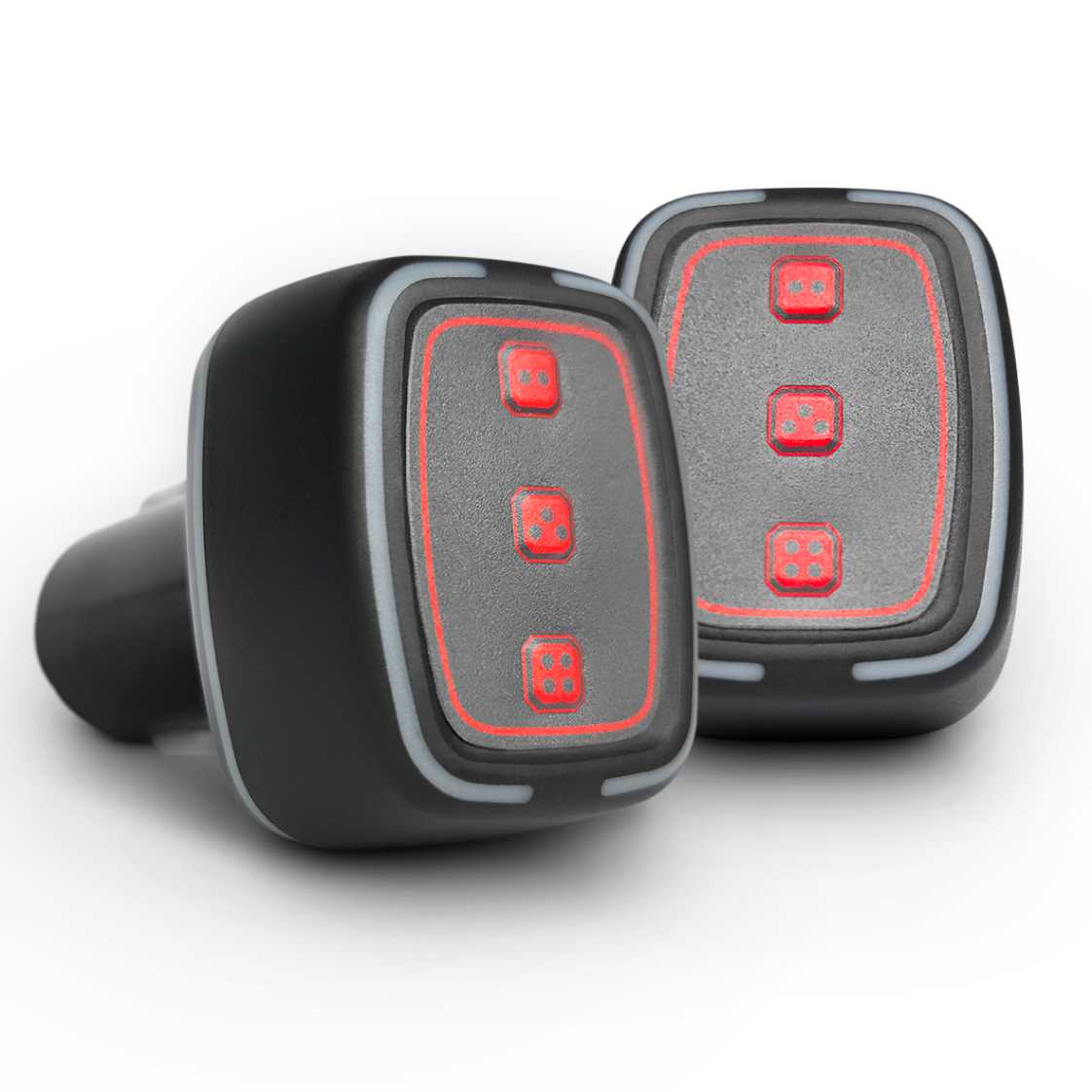

UR-U2K	UR-43K

Frequency:433MHz	Frequency:433MHz
Power supply:powering up remote communication in the car cigarette lighter socket	Power supply:powering up remote communication in the car cigarette lighter socket
Remote control communication: rolling code+128 bit non-linear encryption technology	Remote control communication: rolling code+128 bit non-linear encryption technology
Working distance:≤30m	Working distance:≤30m
Add card or delete card mode:through short circuit or special remote control	Add card or delete card mode:through short circuit or special remote control
Encryption method:use special USB cable for encryption	Encryption method:use special USB cable for encryption
Working voltage:10-30VDC	Working voltage:10-30VDC
Opening mode:Automatic opening + push button(ON, OFF)	Opening mode:Automatic opening + push button(ON, OFF,STOP)

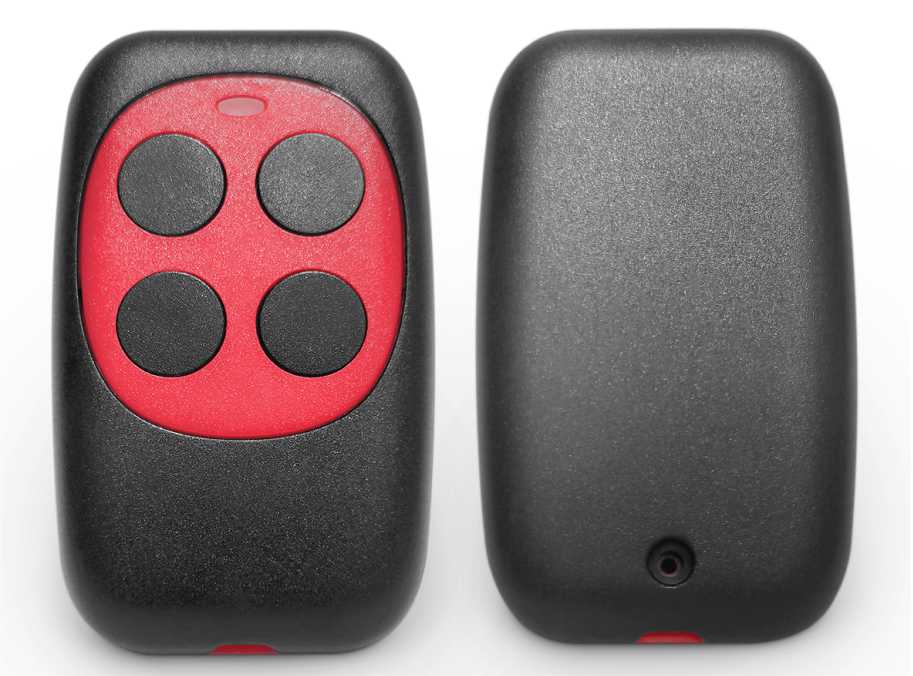

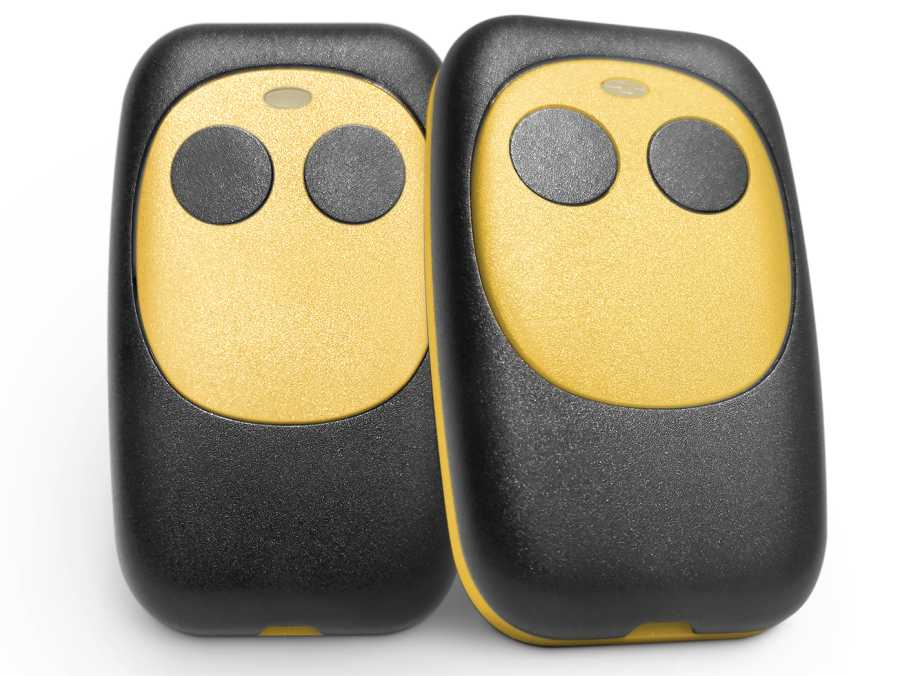

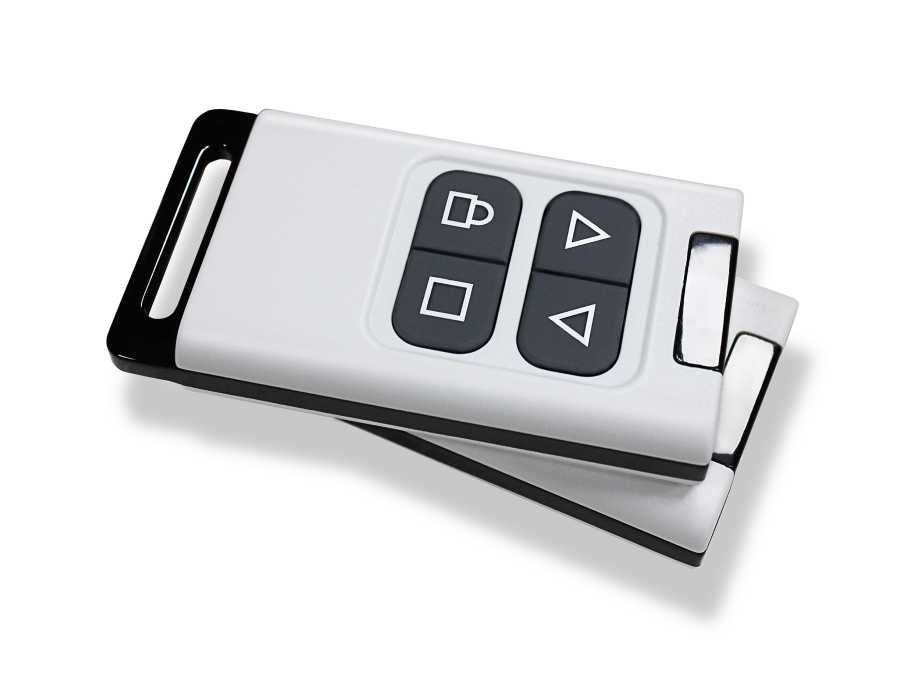

RM-2K	RM-4K

Frequency:433MHz
Power supply:battery powered
Remote control communication:rolling code+128 bit non-linear encryption technology
Working distance:≤30m
Add card or delete card mode:through short circuit or special remote control
Encryption method:use special USB cable for encryption
Battery specifications:CR2032
Working voltage:3VDC
Door opening mode:manual remote control

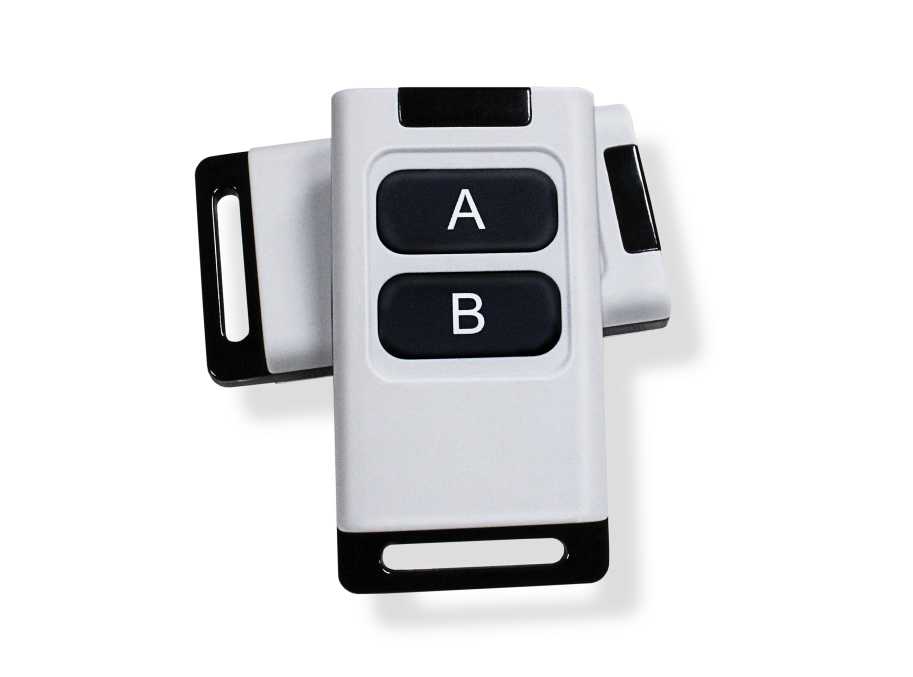

LSK4-2	LSK4-4

Name:High Power Remote Transmitter
Frequency:433.92MHz
Voltage:12V
Battery model:27A 12V
Quiescent current:3uA
Working current:23 mA
Remote control communication:rolling code+128 bit non-linear encryption technology
Button:2 button and 4 button can be selected
Working distance:100m(In Air)
